Handtop’s HT1610UV RG5
High precision light weight entry level UV flatbed printer specifically designed for personalized processing enterprises to meet their high accuracy and specialized requirements. Equipped with 2-4 Ricoh Gen5 print heads, the HT1610UV RG5 printer can print at high speeds as well as high precision in 7 colors 1200 x 1200 DPI. In addition, the optional white ink mode and varnish mode adds to the multi-function of the HT1610UV RG5
HT2512UV RG5 FLATBED UV PRINTER
High precision UV flatbed printer specially designed for personalised processing enterprises to meet their high accuracy and personalised requirements. Equipped with 2-4
Ricoh Gen5 print heads, the HT2512UV RG5 printer can print in high speed as well as high recision in 8 colors 1200 x 1200 DPI. The draft print speed up to 42㎡/h, which balances the needs of speed and the output quality. In addition, the optional white in mode and varnish mode also adds to the multi-function of the HT2512UV RG5.

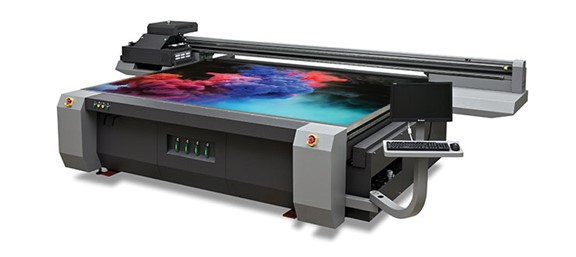

HT3116UV FK10 FLATBED UV PRINTER
High precision UV flatbed printer specially designed for personalized processing enterprises to meet their high accuracy and personalized requirements. Equipped with 4-8 Kyocera grey-scale piezoelectric print heads, the HT3116UV FK10 printer can print in high speed as well as high precision in 4-8 colors 1200 x 1200 DPI. In addition, the optional white ink mode and varnish mode also adds to the multi-function of HT3116UV FK10

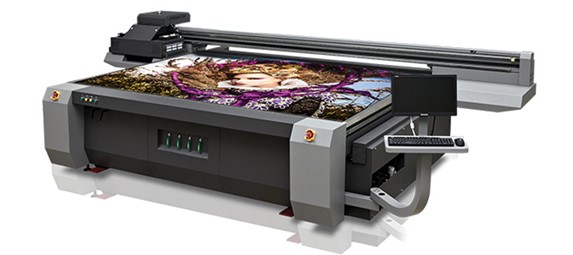

HT3020UV FK10 FLATBED UV PRINTER
High precision UV flatbed printer specially designed for personalised processing enterprises to meet their high accuracy and personalised requirements. Equipped with 4-10 Kyocera grey-scale piezoelectric print heads, the HT3020UV FK10 printer can print in high speed as well as high precision in 8 colors 1200 X 1200 DPI. The draft print speed up to 91 ㎡/h to satisfy the high precision personalised manufacture requests. In addition, the optional white ink mode and varnish mode adds to the multi-function of HT3020UV FK10.
Specifications
- MODEL – HT1610UV RG5 (Single Row)
- PRINT HEAD TYPE – Ricoh Gen5
- AMOUNT OF PRINT HEADS – 2-4pcs (Single row)
- RESOLUTIONS – 1200 x 1200 DPI
- PRINTING SPEED – DRAFT: 20m²/hr / PRODUCTION QUALITY: 13m²/hr / STD. QUALITY: 9m²/hr
- PRINT MODES – UNIDIRECTIONAL AND BIDIRECTIONAL
- MAX MEDIA WIDTH & HEIGHT – MEDIA WIDTH: 1.6m x 1.0m / MEDIA HEIGHT: 100mm
- MEDIA TYPE – RIGID AND FLEXIBLE FLAT MATERIALS
- INK COLOURS – C、M、Y、K、Lc、Lm、W（varnish is optional when there is no Lc and Lm)
- IMAGE FORMAT – Adobe Postscript Level3、PDF、JPEG、TIFF、EPS、AI
- DIMENSIONS – MACHINE: 3.44m X 2.21m X 1.28m / PACKAGE DIMENSIONS: 3.20m x 1.90m x 1.60m
- WEIGHT – N.W: 570KG / G.W: 990KG
- ELECTRICAL – POWER CONSUMPTION: 5.3KW(27A) POWER SUPPLY: 230VAC.50Hz L/N/PE
- CERTIFICATION – CE,FCC
- RIP SOFTWARE – ONYX,CALDERA
- UV CURING – MERCURY VAPOR UV LAMPS OR LED
- INTERFACE – HIGH SPEED PCIE
- ENVIRONMENT – Separated workroom in good cleaning and ventilated condition. Ambient Temperature:
18˚ C – 30˚ C(64˚F-86˚F) Constant Humidity: 30%-70%RH(non-condensate)
- MODEL – HT2512UV RG5
- PRINT HEAD TYPE – Ricoh Gen5
- AMOUNT OF PRINT HEADS – 2-4pcs (Single row)
- RESOLUTIONS – 1200 x 1200 DPI
- PRINTING SPEED –DRAFT: 42m²/hr / PRODUCTION QUALITY: 30m²/hr / STD. QUALITY: 21m²/hr
- PRINT MODES – UNIDIRECTIONAL AND BIDIRECTIONAL
- MAX MEDIA WIDTH & HEIGHT – MEDIA WIDTH: 2.5m x 1.2m / MEDIA HEIGHT: 100mm
- MEDIA TYPE – RIGID AND FLEXIBLE FLAT MATERIALS
- INK COLOURS – C、M、Y、K、Lc、Lm、W（varnish is optional when there is no Lc and Lm)
- IMAGE FORMAT – Adobe Postscript Level3、PDF、JPEG、TIFF、EPS、AI
- DIMENSIONS – MACHINE: 4.67m X 2.51m X 1..38m / PACKAGE DIMENSIONS: 5.0m x 2.10m x 1.80m
- WEIGHT – N.W: 1150KG / G.W: 1745KG
- ELECTRICAL – POWER CONSUMPTION: 8.3KW(27A) POWER SUPPLY: 400VAC.50Hz 3P/N/PE
- CERTIFICATION – CE,FCC
- RIP SOFTWARE – ONYX,CALDERA
- UV CURING – MERCURY VAPOR UV LAMPS OR LED
- INTERFACE – HIGH SPEED PCIE
- ENVIRONMENT – Separated workroom in good cleaning and ventilated condition. Ambient Temperature:
18˚ C – 30˚ C(64˚F-86˚F) Constant Humidity: 30%-70%RH(non-condensate)
- MODEL – HT3116UV FK10 (Double Row)
- PRINT HEAD TYPE – Kyocera KJ4A
- AMOUNT OF PRINT HEADS – 10pcs (Symmetrical head configuration)
- RESOLUTIONS – 1200 x 1200 DPI
- PRINTING SPEED – DRAFT: 130m²/hr / PRODUCTION QUALITY: 90m²/hr / STD. QUALITY: 70m²/hr
- PRINT MODES – UNIDIRECTIONAL AND BIDIRECTIONAL
- MAX MEDIA WIDTH & HEIGHT –MEDIA WIDTH: 3.05m x 1.54m / MEDIA HEIGHT: 100mm
- MEDIA TYPE – RIGID AND FLEXIBLE FLAT MATERIALS
- INK COLOURS – C、M、Y、K、Lc、Lm、W（varnish is optional when there is no Lc and Lm)
- IMAGE FORMAT – Adobe Postscript Level3、PDF、JPEG、TIFF、EPS、AI
- DIMENSIONS – MACHINE: 5.22m X 2.71m X 1.38m / PACKAGE DIMENSIONS: 5.56m x 2.28m x 1.80m
- WEIGHT – N.W: 1450KG / G.W: 2160KG
- ELECTRICAL – POWER CONSUMPTION: 8.3KW(20A) POWER SUPPLY: 400VAC.50Hz 3P/N/PE
- CERTIFICATION – CE,FCC
- RIP SOFTWARE – ONYX,CALDERA
- UV CURING – MERCURY VAPOR UV LAMPS OR LED
- INTERFACE – HIGH SPEED PCIE
- ENVIRONMENT – Separated workroom in good cleaning and ventilated condition. Ambient Temperature:
18˚ C – 30˚ C(64˚F-86˚F) Constant Humidity: 30%-70%RH(non-condensate)
- MODEL –HT3020UV FK10
- PRINT HEAD TYPE – Kyocera KJ4A
- AMOUNT OF PRINT HEADS –4-10pcs (Symmetrical head configuration-Double Row)
- RESOLUTIONS – 1200 x 1200 DPI
- PRINTING SPEED –DRAFT: 95m²/hr – 140m²/hr / PRODUCTION QUALITY: 70m²/hr – 95m²/hr / STD. QUALITY: 53m²/hr – 73m²/hr
- PRINT MODES – UNIDIRECTIONAL AND BIDIRECTIONAL
- MAX MEDIA WIDTH & HEIGHT – MEDIA WIDTH: 3.0m x 2.0m / MEDIA HEIGHT: 100mm
- MEDIA TYPE – RIGID AND FLEXIBLE FLAT MATERIALS
- INK COLOURS – C、M、Y、K、Lc、Lm、W（varnish is optional when there is no Lc and Lm)
- IMAGE FORMAT – Adobe Postscript Level3、PDF、JPEG、TIFF、EPS、AI
- DIMENSIONS –MACHINE: 5.22m X 3.24m X 1.38m / PACKAGE DIMENSIONS: 5.56m x 2.28m x 1.65m
- WEIGHT – N.W: 1520KG / G.W: 2330KG
- ELECTRICAL – POWER CONSUMPTION: 8.3KW(20A) POWER SUPPLY: 400VAC.50Hz 3P/N/PE
- CERTIFICATION – CE,FCC
- RIP SOFTWARE – ONYX,CALDERA
- UV CURING – MERCURY VAPOR UV LAMPS OR LED
- INTERFACE – HIGH SPEED PCIE
- ENVIRONMENT – Separated workroom in good cleaning and ventilated condition. Ambient Temperature:
18˚ C – 30˚ C(64˚F-86˚F) Constant Humidity: 30%-70%RH(non-condensate)
High Precision
2-4 Ricoh Gen5 and Kyocera KJ4A print heads, maximum DPI 1200 x 1200. These printers use precision harmonic reducers to drive the belt which ensures smooth and stable motion of the carriage. The fixed linear raster guides the carriage, ensuring high accuracy motion. The Retractable Alignment bar allows for accurate media placement.
User Friendly
Full loop auto media thickness detector and auto height control system. Auto skip function identifies and evades the blank part, optional pipeline printing mode. Optional UV light irradiation power & Nozzle compensation function. Auto pin registration devices & Anti-collision device on the carriage.
Stable & Reliable
Durable parts for industrial production. We chose IGUS chain, AB servo motors, Megadyne synchronous belt, etc. Emergency stop switches on the machine make it easy to stop operation from any corner of the printer. The machine also includes a Backup power supply.
SAVE 30% to 50% INK USAGE
Multi-drop pixel technology to decrease ink usage.
